Allen-Bradley 25B-V4P8N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 4.8 Amps, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter.
Allen-Bradley 25B-V6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 6 Amps, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter.
Allen-Bradley 25B-D4P0N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 4 Amps, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter.
Allen-Bradley 25B-D6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 6 Amps, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter.
Hydraulics and pneumatics
Pumps and compressors
Measuring ranges from 0 ... 6 bar to 0 ... 600 bar
Non-linearity 0.5 %
Standard industrial signals
Electrical connection: Angular connector form A and C, circular connector M12 x 1, Metri-Pack series 150, cable outlet 2 m unshielded or shielded
Many internationally customary process connections

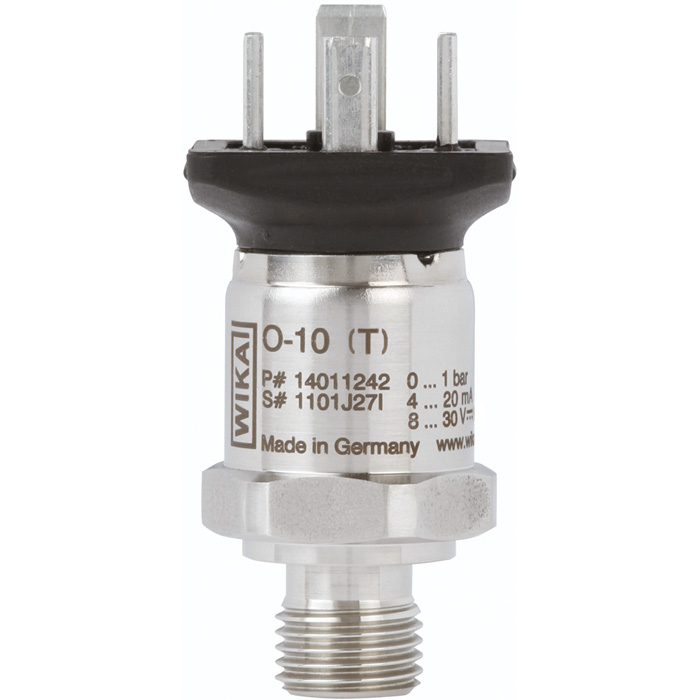

The model O-10 pressure transmitter has been developed for a wide variety of industrial applications. A large range of process and electrical connections as well as all commonly used pressure ranges and output signals set the model O-10 apart.
For applications in which water is used as a medium we recommend a 5-fold overpressure safety in combination with a condensation-tight case.
Due to its specifications, its features and its price, thepressure transmitter is ideally suited to OEM applications with an annual quantity requirement of more than 1,000 units of each part number. Accordingly, the minimum batch size is 50 units.
The model O-10 has been designed specifically for the demands of the global market.The pressure transmitteroffers international units and the corresponding approvals for the North American and Russian markets.
It goes without saying that the O-10 can be delivered with customer-specific labelling (e.g. company logo and model designation).
