Yokogawa AXFA14 Magnetic flow meter

2015-06-29 15:25:59

Description:

Quick Details Place of Origin: Japan Brand Name: Yokogawa Model Number: AXFA14 Packaging & Delivery Packaging Details: in carton or according to custom's service Delivery Detail: 2 weeks Specifications YOKOGAWA AXFA14G/C Magnetic Flowmeter Remote Converter 1.Outstanding reliability 2.Compact and Light-weight Converter……

Notice:

New Products

Allen-Bradley 25C-D1P4N114 PowerFlex 527 low voltage AC drives - Rockwell

Allen-Bradley 25C-D1P4N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 1.4 Amps, 0.5 HP, 0.4 kW Normal Duty; 0.5 HP, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter.

Allen-Bradley 25C-D2P3N104 PowerFlex 527 low voltage AC drives - Rockwell

Allen-Bradley 25C-D2P3N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 2.3 Amps, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter.

Allen-Bradley 25C-D2P3N114 PowerFlex 527 low voltage AC drives - Rockwell

Allen-Bradley 25C-D2P3N114 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 2.3 Amps, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter.

Allen-Bradley 25C-D4P0N104 PowerFlex 527 low voltage AC drives - Rockwell

Allen-Bradley 25C-D4P0N104 PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety, 480 VAC, 3 Phase, 4 Amps, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter.

Assortments

Description

Quick Details

  • Place of Origin: Japan

  • Brand Name: Yokogawa

  • Model Number: AXFA14

Packaging & Delivery

Packaging Details:in carton or according to custom's service
Delivery Detail:2 weeks

Specifications

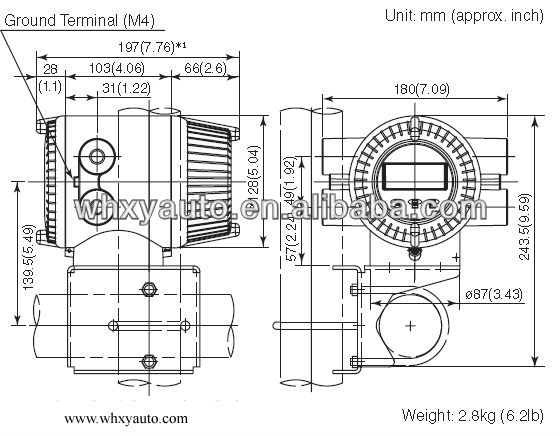

YOKOGAWA AXFA14G/C Magnetic Flowmeter Remote Converter
1.Outstanding reliability
2.Compact and Light-weight Converter









  Yokogawa ADMAG CA Series Capacitance Magnetic Flowmeters




Product Description






1.User-oriented Functionality

By constantly monitoring the level of insulating substance on the electrodes, it is possible to determine when maintenance is required. With the utilization of an optional replaceable electrode type flowtube, in cases of severe adhesion, the electrodes
can be easily removed from the flowmeter and

2.Flexible Electrical Yokogawa Flowmeter Connection Direction Yokogawa Flowmeter
   The converter or the terminal box can be rotated in either direction to match the position of the electrical connections at the installation site.
3.Clear and Versatile Indications
   The large, backlit full dot matrix LCD Yokogawa Flowmeter can display a variety of messages up to three lines in length. When an alarm condition occurs, a full description of the appropriate countermeasure is displayed.
4.Easy Setup
   The most frequently used parameters are arranged in a group at the top of the display. Infrared switches enable the setting of parameters without opening the cover.
5.Operation Immediately after Installation Yokogawa Flowmeter

The AXFA14 is shipped with the main parameters completely set. Therefore, the AXFA14 can be operated immediately after installation and wiring.

MODEL AND SUFFIX CODES:

ModelSuffix codeDescription
AXFA14

Magnetic Flowmeter Remote Converter

Use(*2)

G · · · · · ·


C · · · · · ·

General-Purpose Use
For AXF Remote Flowtube of Size
2.5 to 400 mm (0.1 in. to 16 in.)
Explosion proof Type
For Remote Flowtube of Size 2.5 to
400 mm (0.1 in. to 16 in.)

Output Signal and
Communication

-D · · · · · ·
-E · · · · · ·
-F · · · · · ·
-G · · · · · ·

4 to 20 mA DC, BRAIN Communication
4 to 20 mA DC, HART Communication
Digital communication
(FOUNDATION Fieldbus protocol)(*5)
Digital communication
(PROFIBUS PA protocol)(*6)

Power Supply

1 • • • • • • • • •
2 • • • • • • • • •
100 V to 240 V AC or 100 to 120 V DC
24 V AC/DC
Electrical Connections(*3)0 • • • • • • • • •
2 • • • • • • • •
4 • • • • • • • • •

JIS G1/2 female
ANSI 1/2 NPT female
ISO M20 1.5 female

Indicator (*1)(*4)

1 • • • • • • • • •
2 • • • • • • • • •
N• • • • • • • • •

With Indicator (Horizontal)
With Indicator (Vertical)
None

Option/ Optional code (See the Table of
Optional Specifications)
