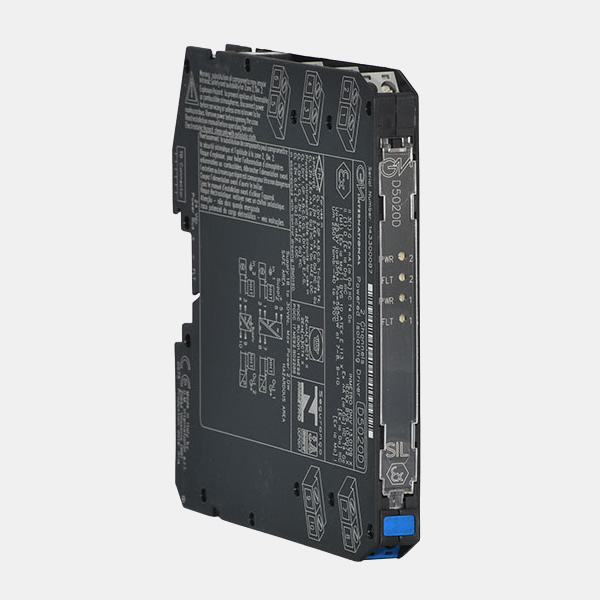

G.M. International D5020D I.S. SIL2 HART® Isolating Driver. GMI Intrinsically Safe Isolators, Analog Output, Discover D5000.

The Isolating Driver D5020 module is a high integrity analog output interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It isolates and transfers a 4- 20 mA signal from a controller located in Safe Area to a load in Hazardous Area. It has a high output capacity combined with a low drop across its input terminals. The circuit allows bi-directional communication signals, for HART® smart positioners. Line and load open/short circuit detection is provided: the fault in the field is directly mirrored to the PLC AO and it is also reported by opening the fault output.

FEATURES

• SIL 2 / SC 3

• Output to Zone 0/Div. 1

• Installation in Zone 2/Div. 2

• 2 fully independent channels

• 4-20 mA Input, Output Signal

• HART® compatible

• Line & Load short/open circuit detection

• Field fault mirroring to the PLC AO

• In-field programmability by DIP Switch

• High Accuracy

• Three port isolation, Input/Output/Supply

• High Density, two channels per unit

STATUS

ACTIVE
