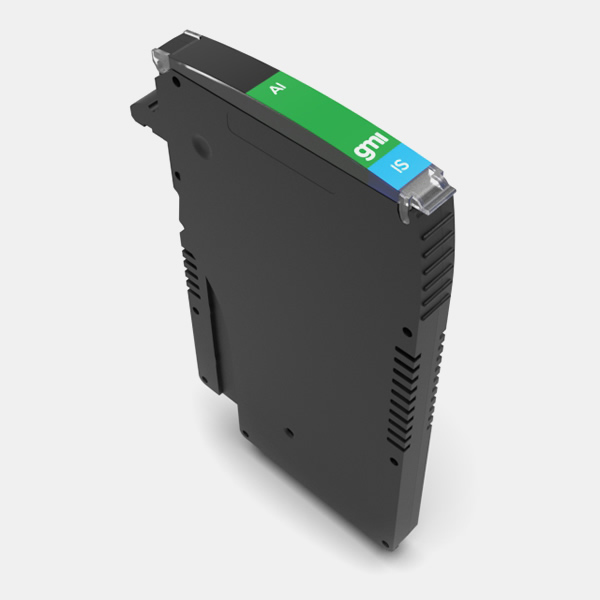

G.M. International X1-IS-AI-02-S Intrinsically Safe Isolators. I.S. SIL2 2-Wire Passive/Active HART® Tx Current Repeater.

The Current Repeater Power Supply X1-IS-AI-02 module is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides an isolated supply for energizing conventional two-wire passive 4-20 mA transmitters located in Hazardous Area, while repeating the current to the system card. Two-wire active transmitters are also supported. The circuit allows bi-directional HART® communication for both passive and active devices. The module always sinks current and the Termination Board extends its use to source loops. An out-of-range current fault according to IEC 60947-5-6 NAMUR NE 43 standard is available with limits configurable through the optional Gateway. To ease maintenance operations, field devices can be disconnected through a two-position insertion/extraction lever mechanism. This product requires a dedicated Termination Board.

FEATURES

• SIL 2 / SC 3

• Input from Zone 0 / Division 1

• Installation in Zone 2 / Division 2

• Loop disconnection to ease maintenance operations

• 4-20 mA 2-wire Active-Passive Input

• HART® compatible

• Out-of-range fault according to IEC 60947-5-6 NAMUR NE 43

• Input and Output short circuit proof

• High Accuracy

• Three port isolation, Input/Output/Supply

STATUS

ACTIVE

CHANNELS

1
