  • Dwyer 1950G-1-B-24 Series 1950G Explosion-proof Differential Pressure Switch

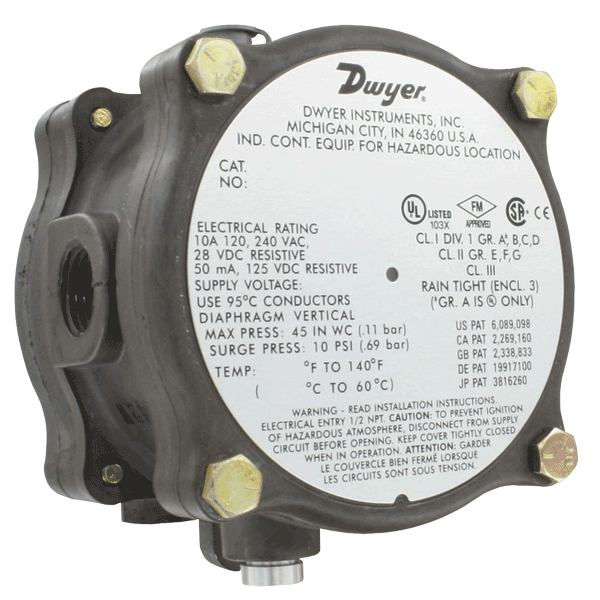

Dwyer 1950G-1-B-24 Series 1950G Explosion-proof Differential Pressure Switch

2018-09-20 10:48:04

Description:

Internal terminal block.……

Notice:

New Products

Allen-Bradley 25B-V4P8N104 PowerFlex 525 low voltage AC drives - Rockwell

Allen-Bradley 25B-V4P8N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 4.8 Amps, 1.0 HP, 0.75 kW Normal Duty; 1.0 HP, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter.

Allen-Bradley 25B-V6P0N104 PowerFlex 525 low voltage AC drives - Rockwell

Allen-Bradley 25B-V6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 120 VAC, 1 Phase, 6 Amps, 1.5 HP, 1.1 kW Normal Duty; 1.5 HP, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter.

Allen-Bradley 25B-D4P0N114 PowerFlex 525 low voltage AC drives - Rockwell

Allen-Bradley 25B-D4P0N114 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 4 Amps, 2 HP, 1.5 kW Normal Duty; 2 HP, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter.

Allen-Bradley 25B-D6P0N104 PowerFlex 525 low voltage AC drives - Rockwell

Allen-Bradley 25B-D6P0N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 480 VAC, 3 Phase, 6 Amps, 3 HP, 2.2 kW Normal Duty; 3 HP, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter.

Assortments

Description

Dwyer 1950G-1-B-24 Series 1950G Explosion-proof Differential Pressure Switch Pressure Differential Pressure Switches Series 1950G



Service

Air and compatible combustible gases.

Wetted   Materials

Consult factory.

Temperature   Limits

0 to 140°F (-17 to 60°C). Note: Set point   drift may occur with ambient temperature changes.

Pressure   Limits

45" w.c. (11.2 kPa) continuous; 10   psig (68.95 kPa) surge.

Enclosure   Rating

NEMA 3 (IP54), NEMA 7 and 9.

Switch   Type

1 Form C relay (SPDT).

Electrical   Rating

10 A, 120/240 VAC, 28 VDC. Resistive 50   mA, 125 VDC.

Power   Requirements

24 VDC ±10%. 120 or 240 VAC ±10%   optional.

Electrical   Connections

Internal terminal block.

Process   Connections

1/8" female NPT.

Mounting   Orientation

Diaphragm in vertical position. Consult   factory for other position orientations.

Set   Point Adjustment

Screw type on top of housing.

Weight

2 lbs 15.7 oz (1.35 kg).

Agency   Approvals

ATEX, CE, CSA, FM, IECEx, UL.



Similar model codes for your reference :

1950G-00-B-120-NA

1950G-0-B-120-NA

1950G-10-B-120-NA

1950G-1-B-120-NA

1950G-20-B-120-NA

1950G-5-B-120-NA

1950G-00-B-24-NA

1950G-0-B-24-NA

1950G-10-B-24-NA

1950G-1-B-24-NA

1950G-20-B-24-NA

1950G-5-B-24-NA
