Littelfuse 460-575 3-Phase Voltage Monitor Protection Relays and Controls Voltage Monitoring Relays 460 Voltage Monitor

2018-09-19 17:11:22

Description:

475 to 600VAC……

Notice:

New Products

Emerson TREXCHPNA9P3 AMS Trex device communicator

Emerson TREXCHPNA9P3 AMS Trex device communicator, HART Application, 3 Years Premium Support.

Emerson TREXCHPNA9P1S AMS Trex device communicator

Emerson TREXCHPNA9P1S AMS Trex device communicator, HART Application, 1 Year Premium Support, Carrying Case.

Emerson TREXCHPNA9P1 AMS Trex device communicator

Emerson TREXCHPNA9P1 AMS Trex device communicator, HART Application, 1 Year Premium Support.

Emerson TREXCHPNA9S3S AMS Trex device communicator

​Emerson TREXCHPNA9S3S AMS Trex device communicator, HART Application, 3 Years Standard Support, Carrying Case.

Assortments

Description

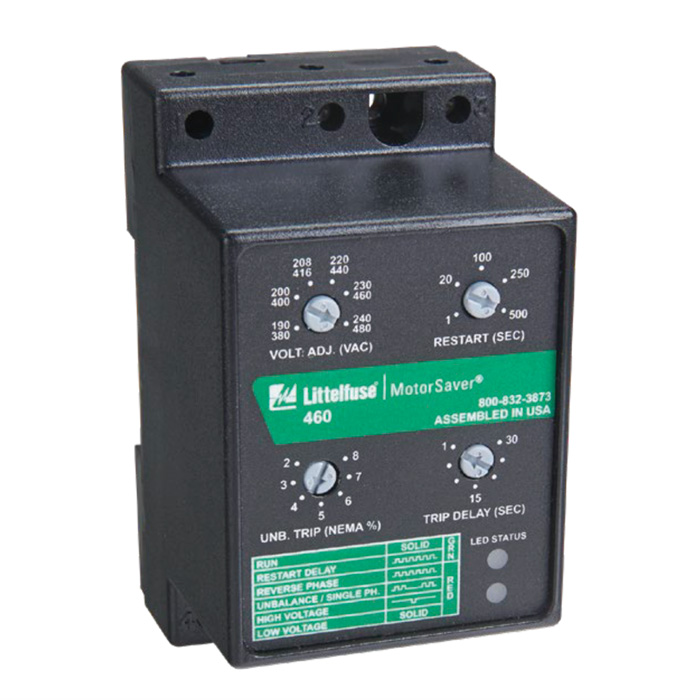

Littelfuse 460-575 3-Phase Voltage Monitor Protection Relays and Controls Voltage Monitoring Relays 460 Voltage Monitor



Input Voltage (V)

475 to 600VAC

Maximum Input Power

6W

Input AC Line Frequency (Hz)

50/60Hz (50Hz will increase all delay   timers by 20%.)

Output Form

Form C

Output Load Rating (VA)

Pilot Duty: 480VA @ 240VAC B300; General   Purpose: 10A @ 240VAC

Restart Delay Range

1 - 500s adjustable

Trip Delay Range

Over Under and Unbalanced Voltage: 1 -   30s adjustable; Single-Phase Faults (>25%UB): 1s fixed

Trip Point Accuracy (%)

±1%

Overvoltage Trip Voltage (%)

110%

Overvoltage Reset Voltage (%)

107%

Undervoltage Trip Voltage

90%

Undervoltage Reset Voltage (%)

93%

Voltage Unbalance Trip Point (%)

2 - 8% adjustable

Voltage Unbalance Reset (%)

Trip setting minus 1% (5-8%) or Trip   setting minus 0.5% (2-4%)

Protection Class

IP20 NEMA 1 (finger safe)

Termination Type

Torque: 6in-lbs; Wire: Stranded or solid   12-20AWG one per terminal

Mounting Method

35mm DIN rail or Surface Mount (#6 or #8 screws)

Operating Temperature

-20° to 70°C (-4° to 158°F)

Storage Temperature (F/C)

-40° to 80°C (-40° to 176°F)

Humidity

10-95% non condensing per IEC 68-2-3

Dimensions

3.50 in H x 2.08 in W x 2.35 in D (88.9 x   52.9 x 59.7 mm)

Weight (lbs/g)

0.7 lb. (11.2 oz. 317.5 g)



Similar model codes for your reference :

460, 460-14, 460-15, 460-400HZ, 460-575, 460-575-14, 460-B, 460-L, 460-MR, 460-OEM, 460-VBM, 460L-OEM
