RKI Instruments GX-2012 Multi Gas Detector Portable Gas Monitors Multi-Gas gas monitor
2018-09-19 12:01:20
Description:
Digital LCD with 7 segments, auto backlight during alarm……
New Products
Orbinox VG SERIES 61 Slurry knife gate valve
Orbinox SERIES 61 (VG) model knife gate valve is a wafer type valve equipped with two metal reinforced rubber sleeves,designed for applications with abrasive slurries.
Crosby J-Series Direct Spring Pressure Relief Valves
J-Series valves provide high quality and dependable overpressure protection for air, gas, steam, vapor, liquid and two-phase applications in one simple design. Now available with two new to the world technologies, Balanced Diaphragm and Bellows Leak Detection.
Vanessa Series 30,000 Cryogenic Triple Offset Valve
The Vanessa Series 30,000 Cryogenic Triple Offset Valve is a virtually maintenance-free valve with tightness, operability and torque demand unaffected by cryogenic conditions and severe temperature fluctuations.
Sempell Model SOT High pressure steam safety valve
The Sempell Model SOT is a high-pressure steam safety valve designed for boiler protection and steam system safety.
Assortments
Description

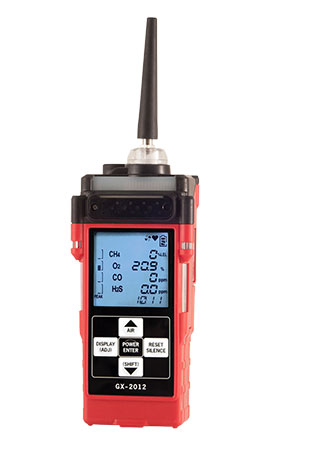

RKI Instruments GX-2012 Multi Gas Detector Portable Gas Monitors Multi-Gas gas monitor
Gas Detected | Combustible Gases (Methane as standard) | % Volume Methane | Oxygen (O2) | Hydrogen Sulfide (H2S) | Carbon Monoxide (CO) |
Detection Principle | Catalytic combustion | Thermal conductivity | Galvanic cell | Electrochemical cell | |
Detection Range | 0 ~ 100% LEL 0 ~ 500 / 1,000 / 2,000 / 5,000 ppm | 0 ~ 100% Vol. | 0 ~ 40% Vol. | 0 ~ 100 ppm | 0 ~ 500 ppm |
Accuracy Statement (whichever is greater) | ± 5% of reading or ± 2% LEL (LEL mode only) | ± 5% of reading or ± 2% of full scale | ± 0.5% O2 | ± 5% of reading or ± 2 ppm H2S | ± 5% of reading or ± 5 ppm CO |
Sampling Method | Internal sample pump, flow rate nominal 0.5 LPM, includes hydrophobic filter | ||||
Display | Digital LCD with 7 segments, auto backlight during alarm | ||||
Preset Alarms (User Adjustable) | 1st alarm 10% LEL 2nd alarm 50% LEL Over alarm 100% LEL | No alarms for % Vol. CH4 | Low alarm 19.5% High alarm 23.5% Over alarm 40.0% | 1st 5 ppm 2nd 30 ppm TWA 10 ppm STEL 15 ppm Over 100 ppm | 1st 25 ppm 2nd 50 ppm TWA 25 ppm STEL 200 ppm Over 500 ppm |
Alarms Types | Gas alarms: 1st and 2nd, STEL, TWA (user adjustable) and OVER Trouble alarms: Sensor connection, low battery, low flow, circuit trouble and calibration error | ||||
Similar model codes for your reference :
GX-6000 Benzene Gas Detector GX-6000 Benzene Specific PID 6 Gas Monitor
GX-6000 PID Gas Monitor, O2, CO, H2S, VOC and Super Toxic Sensors 6 Gas Sample Draw with PID, IR, & Super Toxics
GX-2009 MSHA gas monitor MSHA Four Gas Confined Space Monitor
GX-2009 Portable Multi Gas Detector Smallest Four Gas Confined Space Monitor
GX-2012 gas monitor Multi Gas Detector
Eagle 2 gas monitor 6 Gas Sample Drawing Monitor
Gas Tracer Confined Space – Leak Detector
Eagle 1 to 6 Gas Portable Monitor
RX-415 LEL / O2 or CH4 / 02 for LNG, LPG, & cude oil tankers.
RX-8000 Marine Gas Monitor, RX8000 Portable HC/02 Sample Draw Gas Detector
